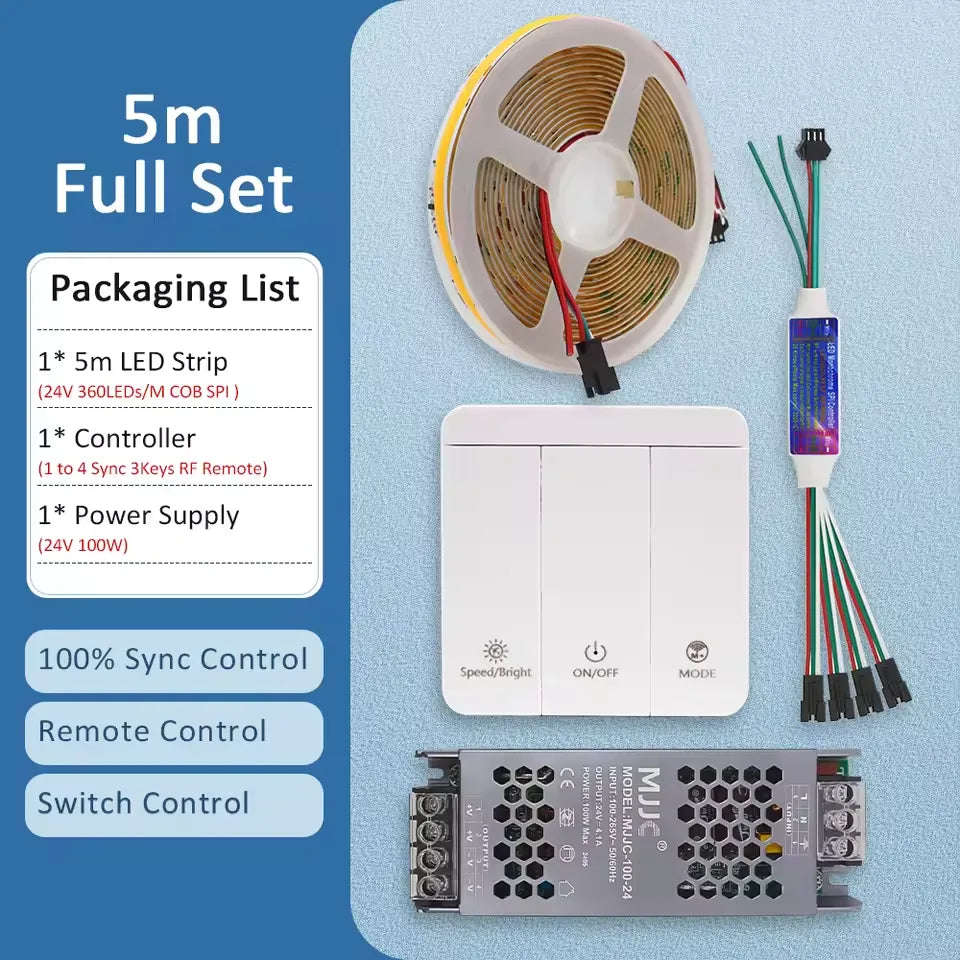

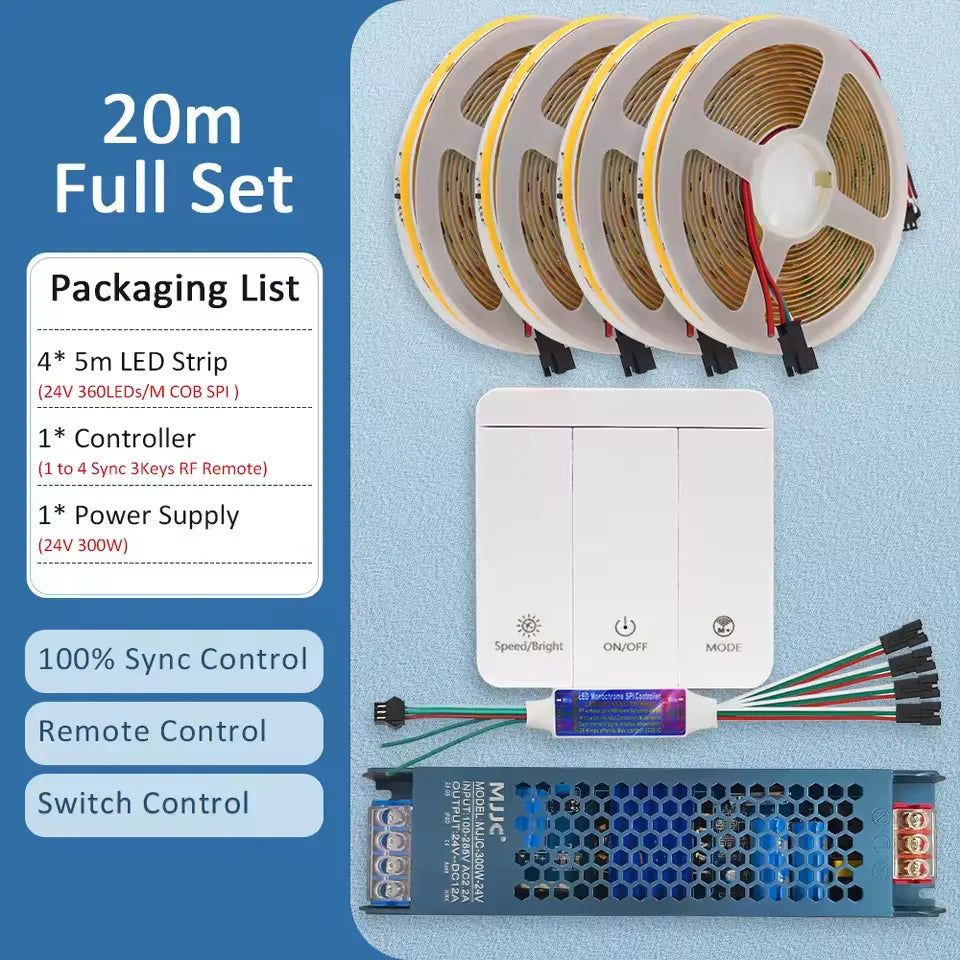

WS2811 Flowing Water LED Strip – 24V COB Tape Light, 10M/15M/20M, Warm/Cool White, Sequential

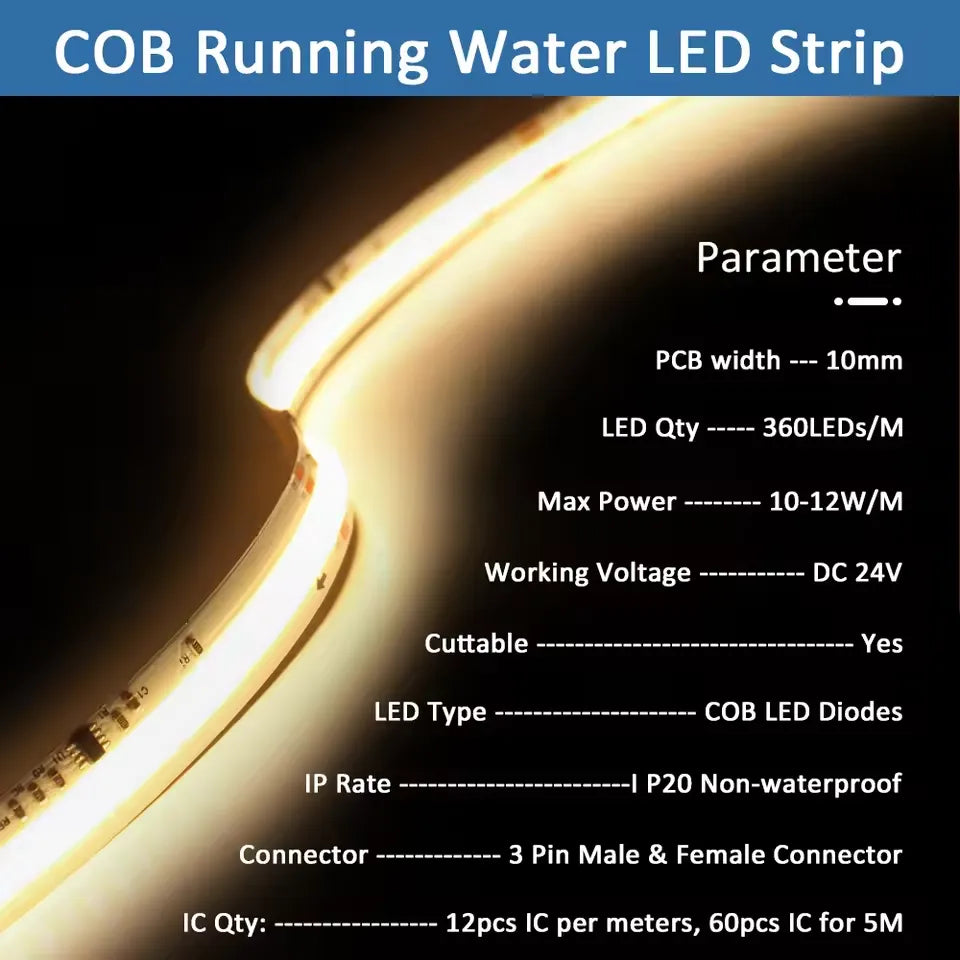

Product Specifications

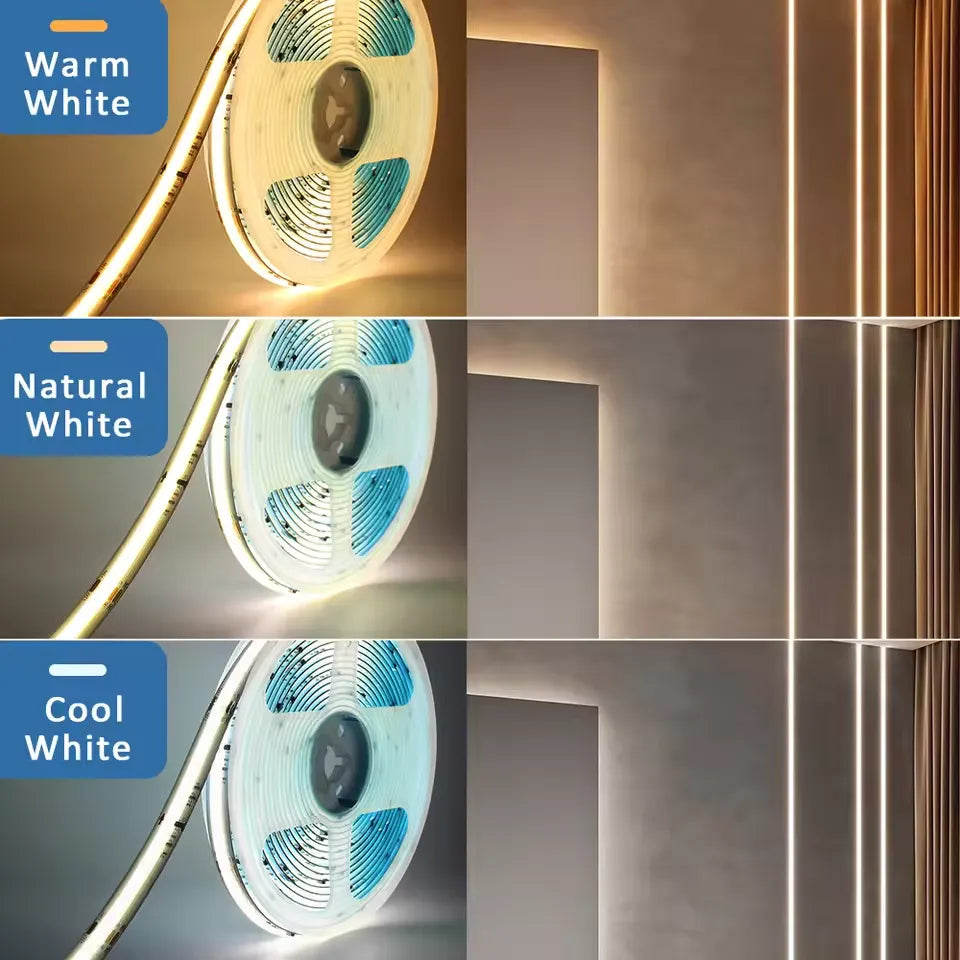

Product Name: WS2811 IC COB Horse Race Led Strip LED Type: COB LED Diodes LED Qty: 360 LEDs/M PCB Width: 10mm Max Power: 10-12W/M Working Voltage: DC 24V Color Options: Cool White / Warm White / Natural White Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K IP Rate: IP20 (Non-waterproof) Connector: 3 Pin Male & Female Connector Package: 5M/Roll

Connection Details

• Red Wire: +24V

• Green Wire: DI/DATA

• White/Black Wire: GND / -24V

Controller Specifications

Product Name: Single Color Horse Race Led Strip Controller Working Voltage: DC 24V (The controller does not connect to the power supply) Control Distance: < 20m Battery Type: CR2032 button cell (Not included) Modes: 26 Different modes built-in controller Switch Function:

• Green Wire connects to a normal switch

• Turn ON, the lights running

• Turn OFF, the lights backflow Max Pixel Control: 3200 pcs Pixels

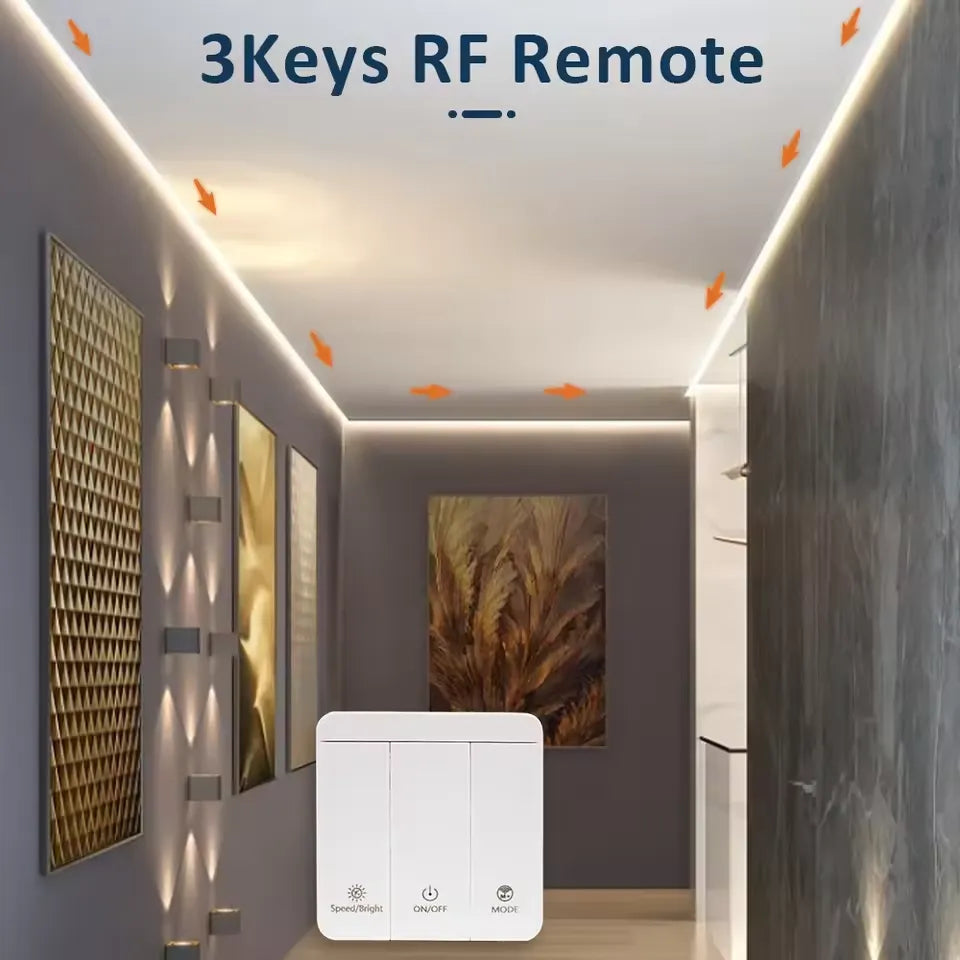

• If more than 3200 pcs pixels, just add extra receiver or amplifier to realize sync working Installation: With 2 pcs double-sided tape, can be stuck anywhere Remote Functions: ON/OFF, Mode Key, Brightness UP/Down, Speed UP/Down

Features

1. One receiver can be controlled by a maximum of 6 pcs 3-keys panel remotes.

2. Two or more receivers can be connected together to realize sync working. The wire between two receivers can be up to a maximum of 10 meters for extension. Best choice for project sync working.

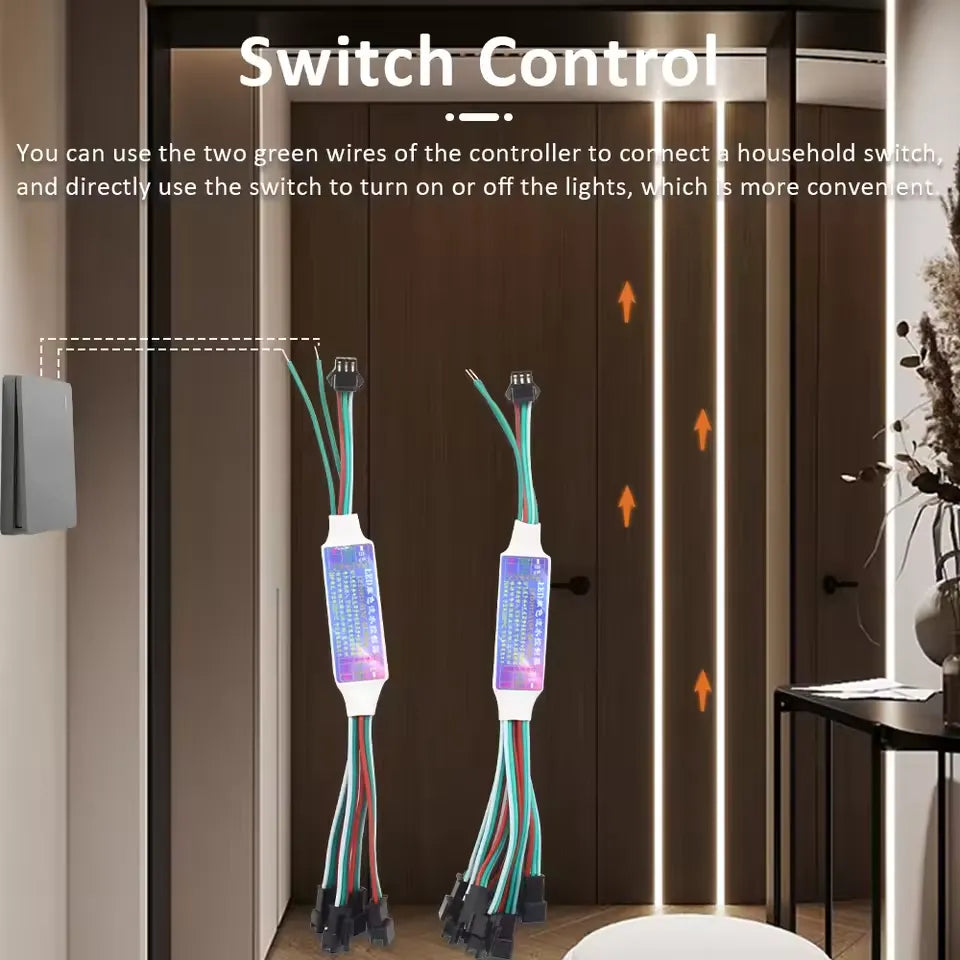

3. The controller can work with a normal switch. Turn ON/OFF by the switch without a remote. It can also connect to Mihome Smart Switch to realize voice control.

Sync Projects

• Wire Connection Sync Working: 99.99% sync (Recommended)

• Wireless Connection Sync Working: May have a delay

How to Pair Remote to the Receiver

1. Turn on the power supply.

2. Long press the "Mode" key for 3 seconds within 2 seconds after powering ON.

3. Successful if the led strip quick flashes 3 times.

One receiver can be controlled by a maximum of 6 pcs panel remote.

Pixel Setting Instructions

If your LED strip is only 10-12m working, please do the "pixel setting" on the remote. This is NOT a quality problem.

How to Set Pixels:

1. Turn OFF the lights

2. Long press the "Mode" key for 5 seconds, press the "Speed" key to increase the pixel quantity, and press the "Mode" key to decrease the pixel quantity.

3. Press "ON/OFF" to save and exit.

The default factory setting is 80 pixels, with a maximum of up to 3200 pixels. If some LED strips are not lighting, please kindly do pixel setting as per the above steps.

Troubleshooting

• Flickering LED Strip: This is NOT a quality problem.

• Connect all LED strips to the power supply in case of voltage drop.
